SAFEXTRA FIRE DOORS

Fire Rated Door - Specification Sheet

Conforms to IS 3614 (Part 2) 1992 and BS476 (Part 20 and 22).

Door Construction

• Door frames (conform to IS 4351:2003) and leaves are made from skin-pass galvanized iron sheet (conform to IS 277).
• Door leaves are constructed from 0.8 mm (22 SWG) skin-pass galvanized sheet to provide 46 mm thick fully flush double-skin shell with lock seam joints at stile edges.
• Core material uses specially designed fire-rated honey comb kraft paper/insulation with reinforcements at top, bottom, and stile surrounds.
• Frame is constructed from 100 mm (18 SWG) skin-pass galvanized iron sheet formed to double rebate profile size 143 x 57 mm / 100 x 57 mm (+/-0.3 mm) with max bending radius 1.4 mm.

Vision Glass and Finish

• Fire-rated vision glass single glazed with 6/8/10/12/13 mm clear or wired glass can be provided in standard dimensions 200 x 300 mm / 300 x 300 mm.
• Door frames and shutters are primed with zinc-phosphate stoving primer.
• Finish options include polyurethane aliphatic grade, epoxy paint, epoxy polyester, pure polyester, and polyurethane powder coating.
• Powder coating thickness: 50-65 microns (dry film thickness).

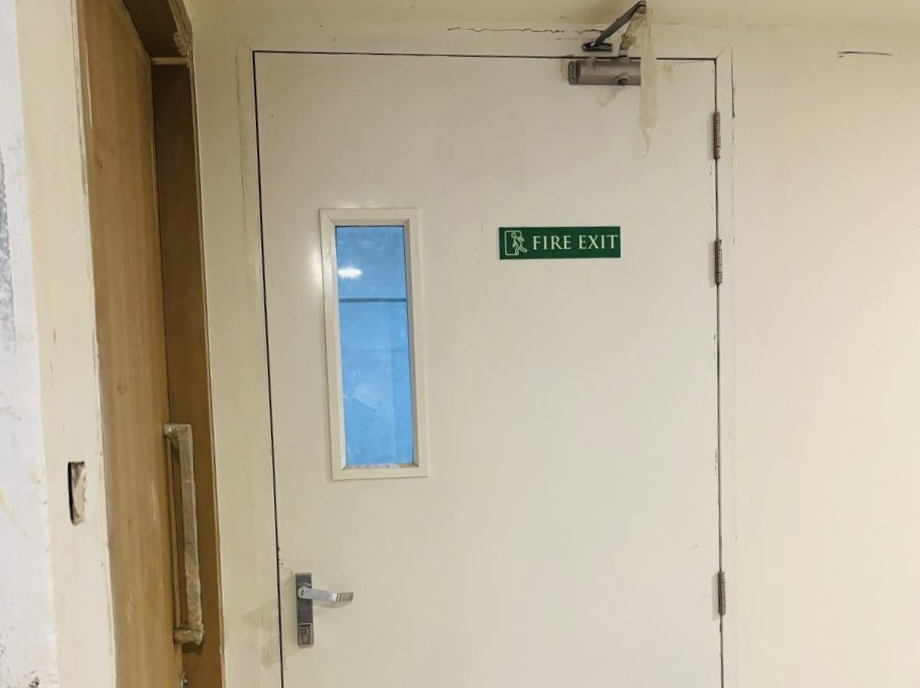

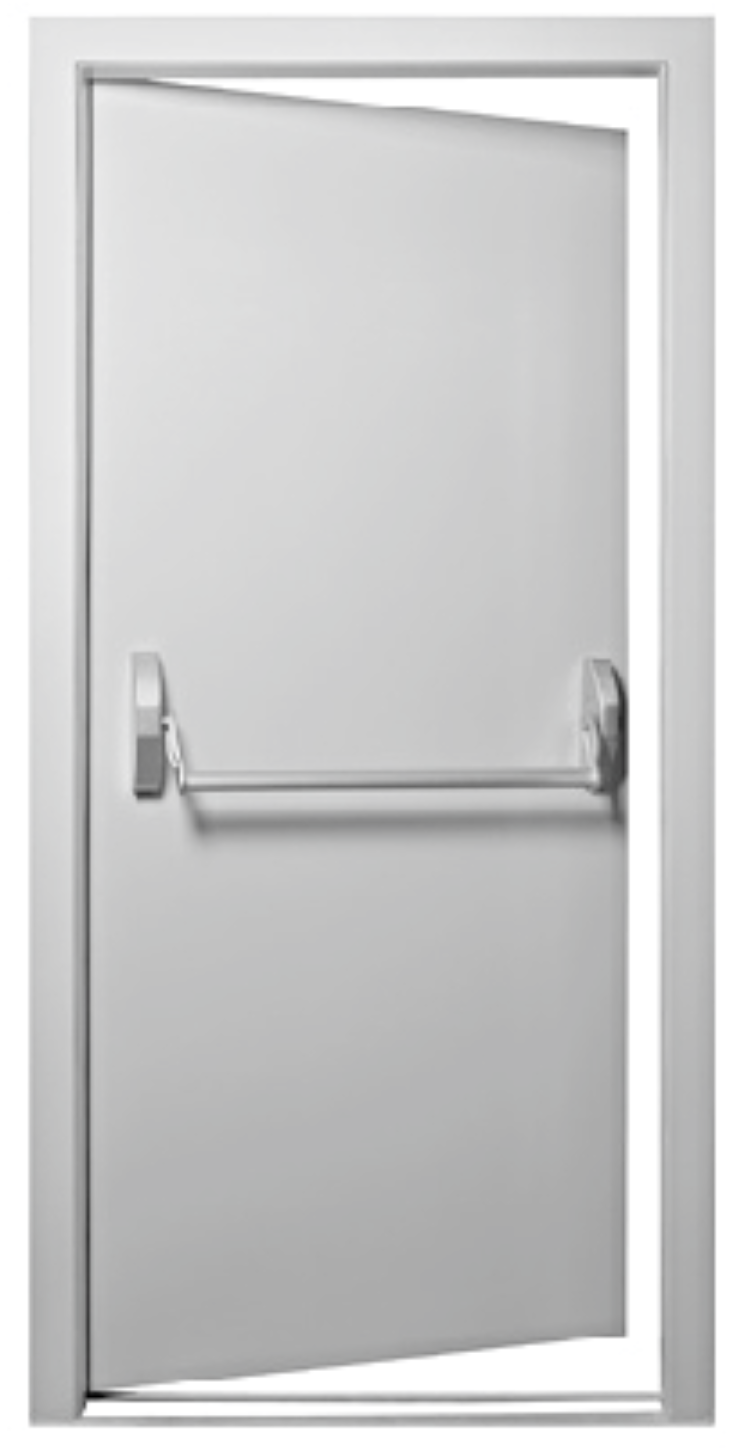

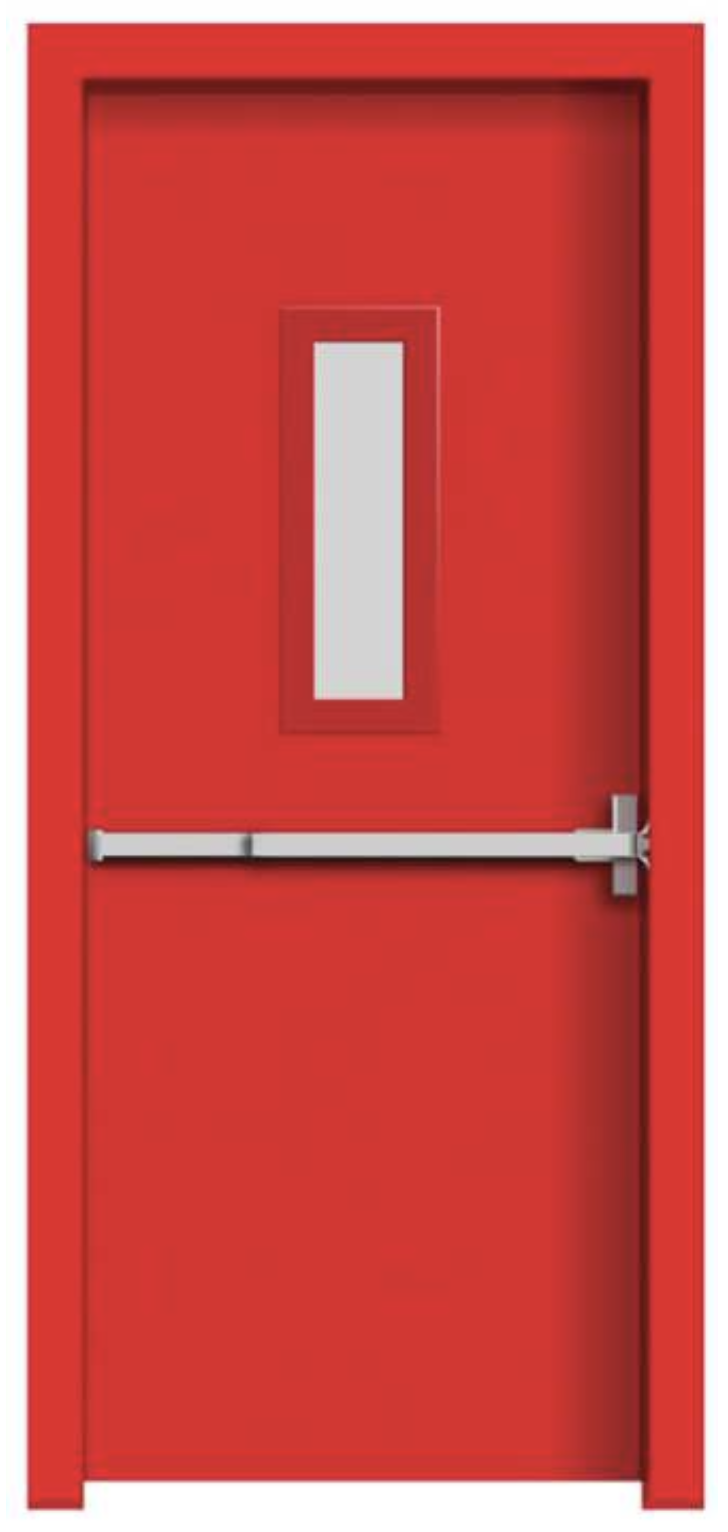

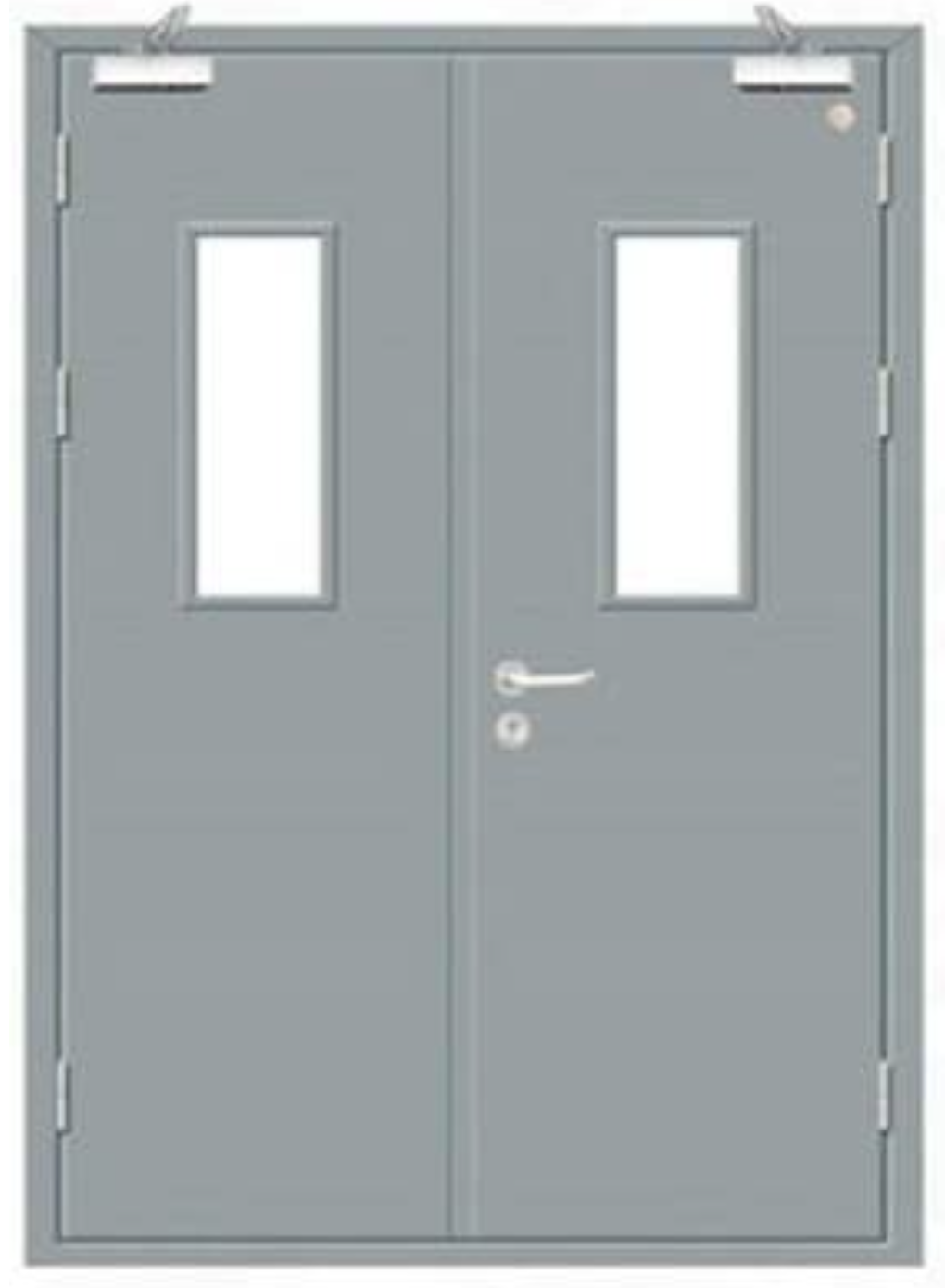

Metal Fire Rated Door

Single leaf / equal leaf / un-equal leaf door configuration.

• Door Type: Metal Fire Rated Door
• Fire Rating: 120 mins
• Shutter Thickness: 46 mm
• Criteria: Stability, Integrity & with Insulation material
• Testing Standards: BS 476 Part 20-22, IS 3614 Part 2
• Frame Size: 100 x 57 mm single rebate / 143 x 57 mm double rebate
• Frame Thickness: 1.20 / 1.60 mm galvanized steel
• Shutter Sheet Thickness: 0.8 / 1.0 / 1.2 mm galvanized steel
• Vision Panel: 2 hrs fire rated toughened clear glass (optional)
• Shutter Infill: Fire rated insulation / honey comb
• Recommended Hardware: SS 304 ball bearing hinges (102 x 75 x 3 mm), fire rated door closer, tower/flush bolt
• Optional Hardware: Mortise dead lock with cylinder and D-shape pull handle; mortise sash lock with cylinder and lever handle; fire-rated panic bar; fire-rated external panic trim
• Recommended Finishes: Powder coating / polyurethane coating in desired RAL shades

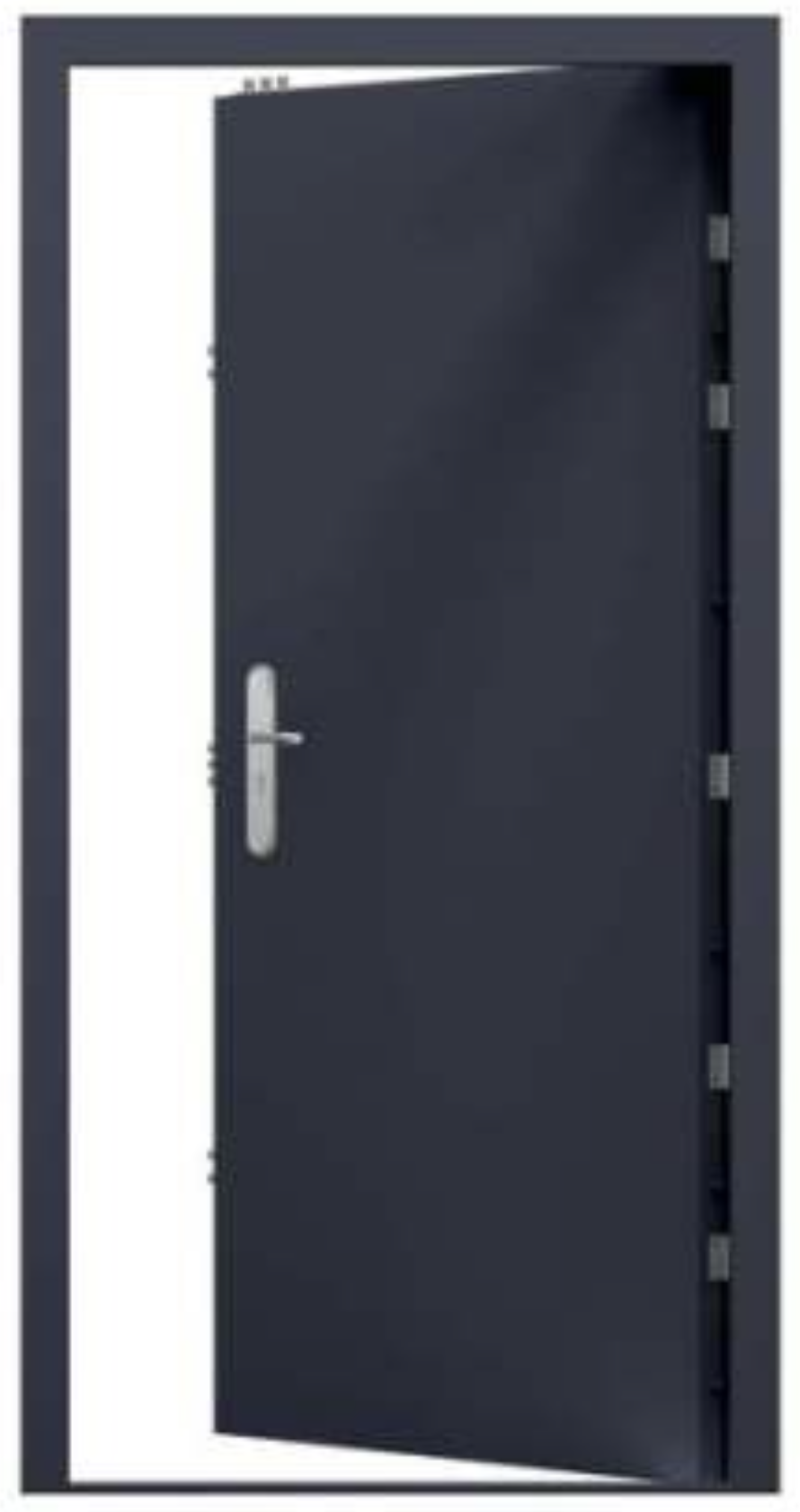

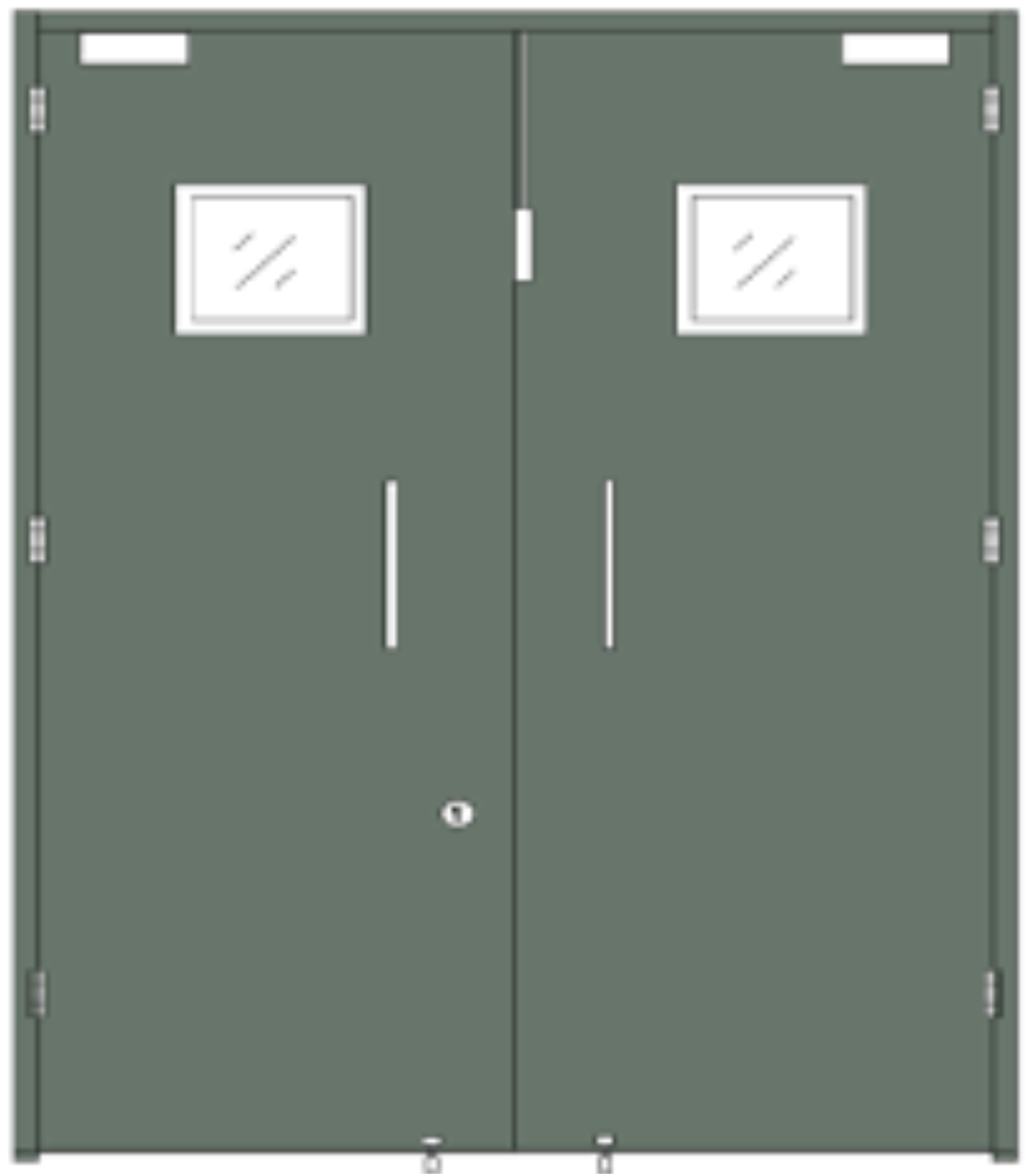

HMPS Door (Hollow Metal Pressed Steel Door)

• Door Type: HMPS Door
• Shutter Thickness: 44 / 46 mm
• Criteria: Stability
• Frame Size: 100 x 57 mm single rebate / 143 x 57 mm double rebate
• Frame Thickness: 1.20 mm hollow metal pressed steel
• Shutter Sheet Thickness: 0.8 / 1.0 mm
• Shutter Thickness: 46 mm
• Finish: Powder coated finish in desired shade
• Recommended Hardware: SS 304 ball bearing hinges (100 x 75 x 3 mm), fire-rated door closer, tower/flush bolt
• Optional Hardware: Mortise dead lock with cylinder and D-shape pull handle; mortise sash lock with cylinder and lever handle; fire-rated panic bar; fire-rated external panic trim

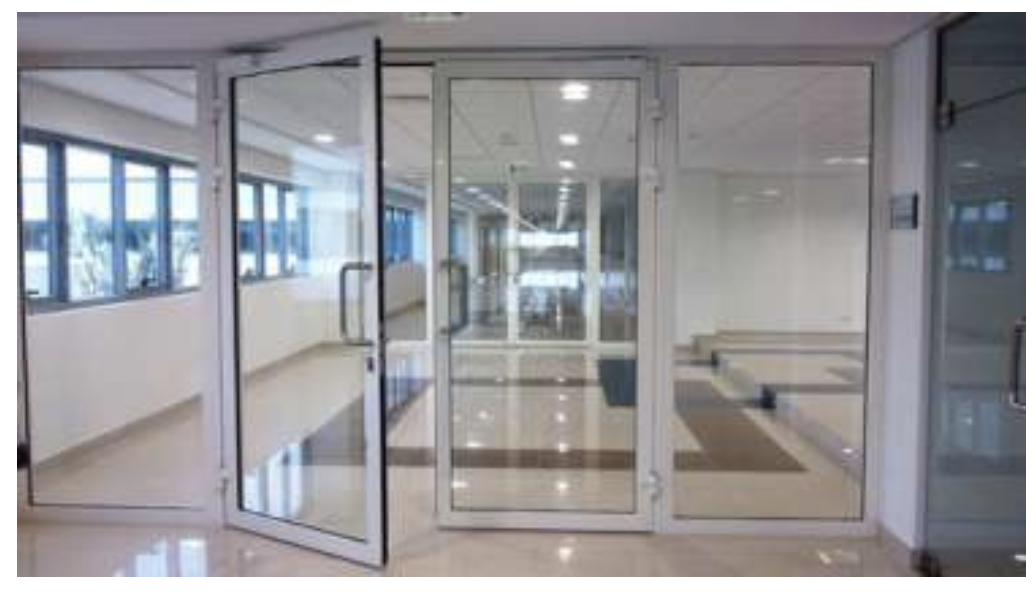

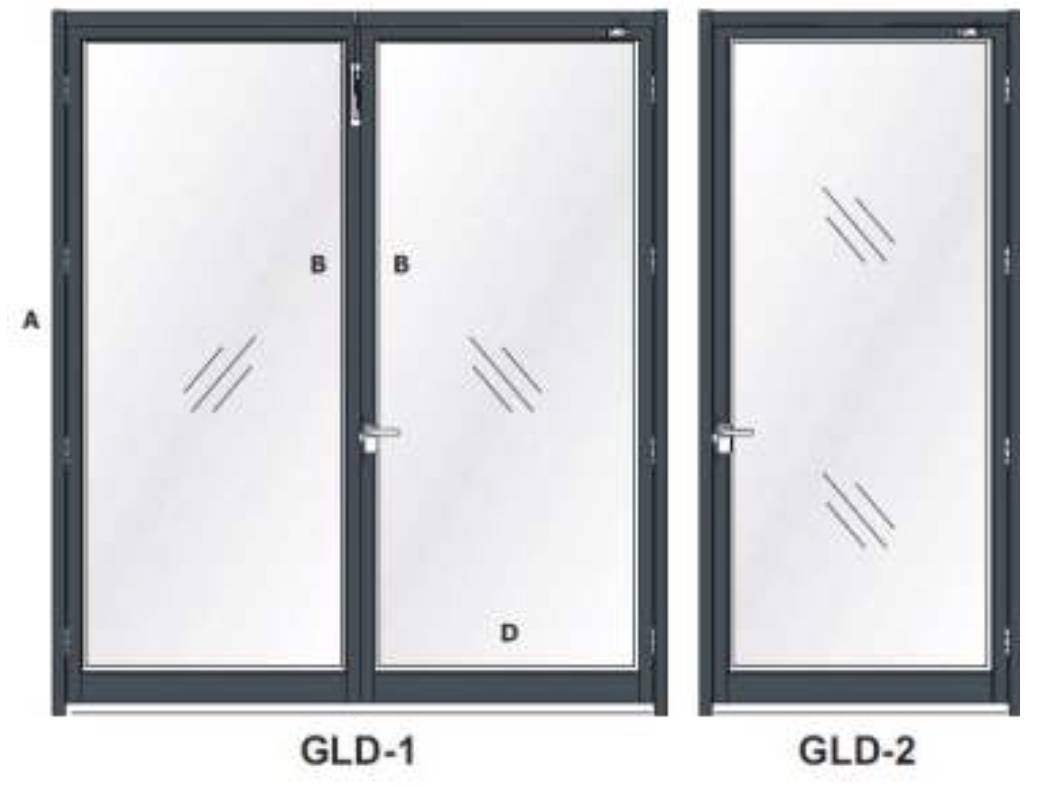

Glazed Metal Fire Rated Door

• Door Type: Glazed Metal Fire Rated Door
• Fire Rating: 60 mins / 120 mins
• Door Frame: 143 x 57 x 1.60 mm
• Shutter Thickness: 50 x 1.60 mm
• Shutter Stiles: Vertical and top members 50 x 100 x 1.60 mm, bottom members 50 x 200 x 1.60 mm
• Criteria: Stability, Integrity & with Insulation material
• Testing Standards: BS 476 Part 20-22, IS 3614 Part 2
• Frame Size: 100 x 57 mm single rebate / 143 x 57 mm double rebate
• Frame Thickness: 1.2 / 1.6 mm galvanized steel
• Shutter Sheet Thickness: 1.2 / 1.6 mm galvanized steel
• Glass: 2 hrs fire rated clear glass 6/8/10 mm
• Shutter Infill Insulation: Mineral wool insulation 12/13 mm
• Recommended Hardware: SS 304 hinges (100 x 75 x 3 mm), fire rated door closer, tower/flush bolt
• Optional Hardware: Mortise dead lock, mortise sash lock, panic bar, external panic trim
• Recommended Finishes: Powder coating / polyurethane coating in desired RAL shades

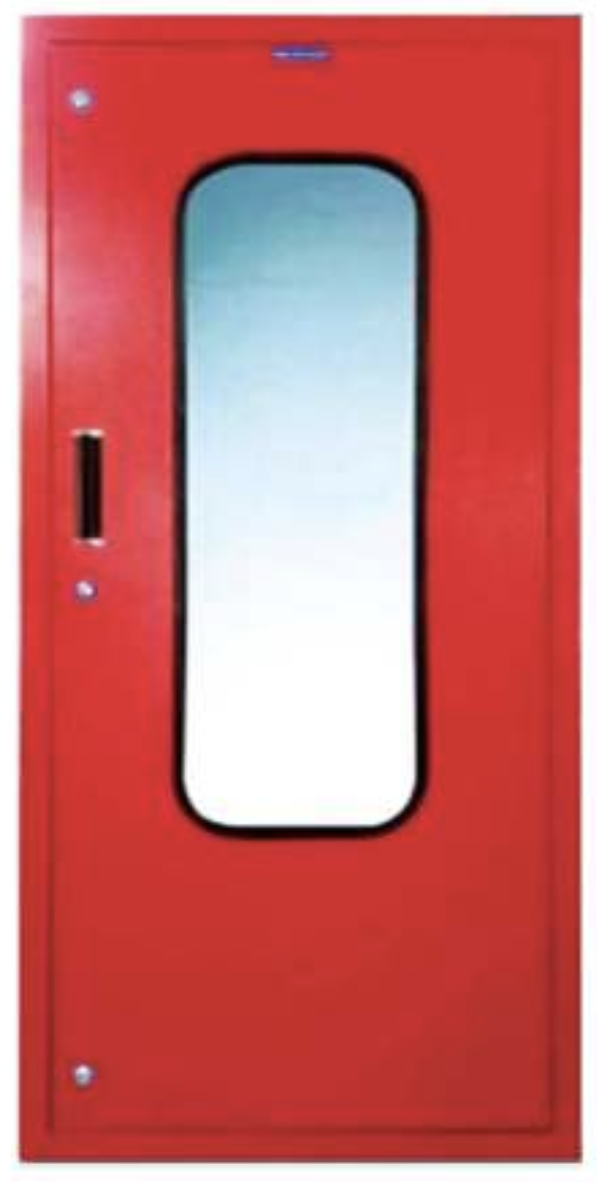

Fire Hose Cabinet Door

Fire Hose Cabinet Door Specification

• Door Type: Angle Iron 40 x 40 x 5 mm
• Door Shutter: Outer frame angle iron 25 x 25 x 3 mm with single sheeted 2 mm thick M.S.
• Finish: Powder coated (PO Red)
• Vision Glass: 4/5 mm thick float glass
• Recommended Hardware: M.S. butt hinges 4" x 2.5 mm (ISI marked), concealed handle, Allen key lock
• Fixing: Holdfast / dash fasteners
• Door Size: 1200 x 2000 mm

Fire Hose Cabinet Box Specification

• Hose Cabinet Box: 90 mm thick (single sheeted)
• Non fire rated as per client requirement
• Fixing: Anchor fastener M10 x 100 mm
• Finish: Powder coated
• Vision Panel: As per glass C/O
• Door Size: 1200 x 2000 mm
• Hardware: Fire rated door closer, tower bolt / M.S. hinge, concealed flush handle
• Recommended Hardware: M.S butt hinges 4" x 2.5 mm, M.S D-type handle, Allen key lock
